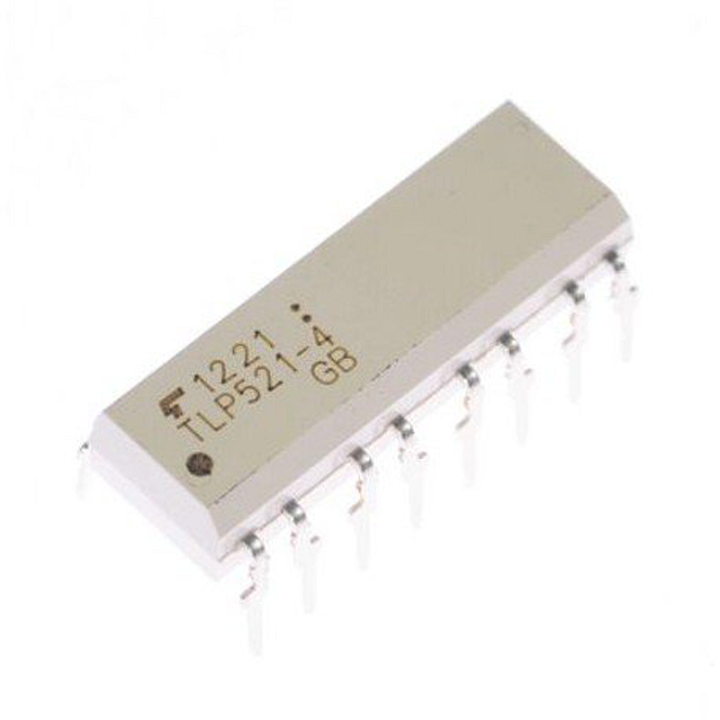

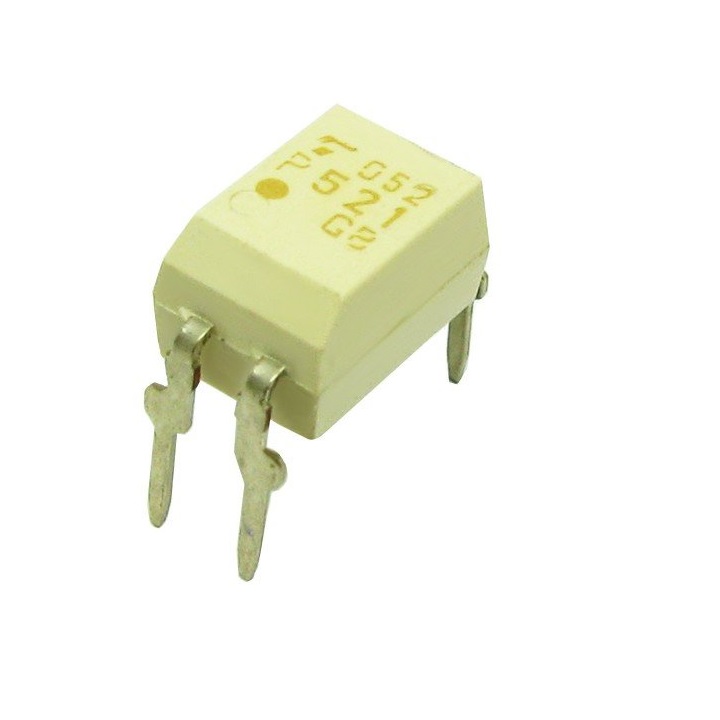

Opto quang TLP521

Manufacturer

Toshiba

Category

Photocouplers

Family

Transistor Output

Configuration

4 Channel

Input Type

AC/DC

Output Device

Phototransistor

Maximum Collector Emitter Voltage

55 V

Maximum Collector Emitter Saturation Voltage

0.4 V

Isolation Voltage

2500 Vrms

Current Transfer Ratio

50 % to 600 %

Maximum Forward Diode Voltage

1.3 V

Minimum Forward Diode Voltage

1 V

Maximum Collector Current

10 mA

Maximum Power Dissipation

150 mW

Operating Temperature

- 25 C ~ + 85 C

Forward Current

16 mA

Maximum Fall Time

2 us

Maximum Input Diode Current

25 mA

Maximum Reverse Diode Voltage

5 V

Maximum Rise Time

2 us

Output Type

DC

Package / Case

DIP-16
