Mạch GSM GPRS GPS A7
Thương hiệu: Chưa cập nhật
350.000₫
Mạch GSM GPRS GPS A7
Mạch GSM GPRS GPS A7 mạch có thiết kế nhỏ gọn, tích hợp đầy đủ các tính năng như các module Sim hiện có trên thị trường như Sim900, Sim800,..., ngoài ra mạch còn được tích hợp thêm khả năng định vị GPS.
Mạch GSM GPRS GPS A7 giao tiếp qua UART với bộ tập lệnh AT quen thuộc đi kèm, rất dễ để điều khiển, lập trình và kết nối với Vi điều khiển hoặc kết nối trực tiếp với máy tính qua USB-UART CP2102.
Sản Phẩm Đi Kèm :

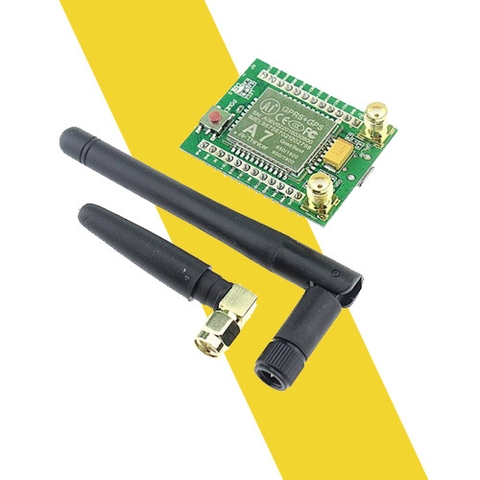

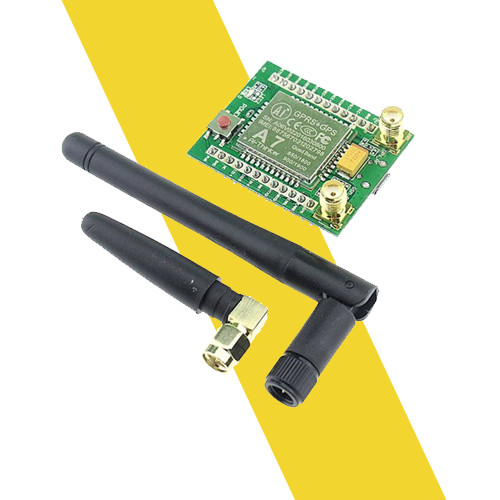

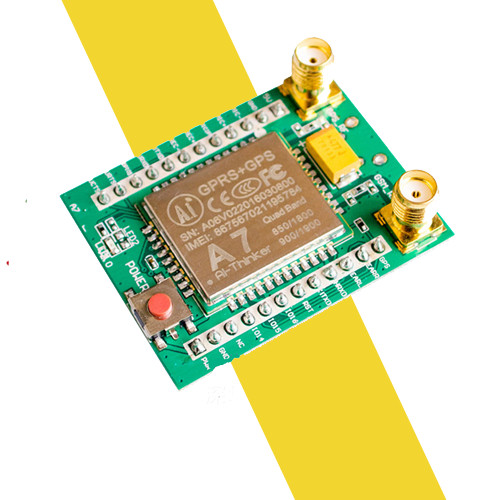

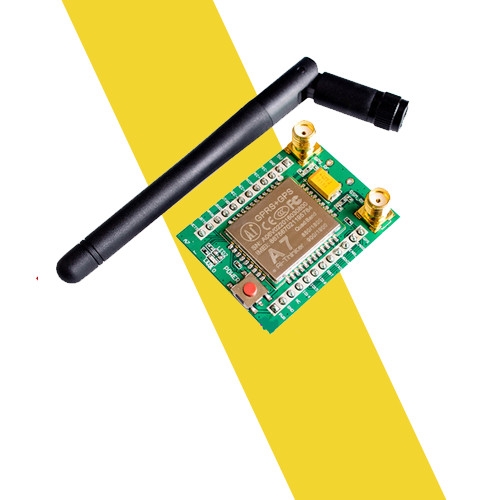

• Bo mạch chủ GSM GPRS GPS A7
• 2 Antenn
Thông số kỹ thuật:
- Nguồn cấp: 5VDC từ cổng Micro USB hoặc chân 5V-GND
- Dòng standby < 5ma
- Support quad-band GSM/GPRS,include 850,900,1800,1900MHZ
- GPRS Class 10
- Sensitivity: <-105
- Supports voice calls
- Supports SMS messages
- GPIO-level 2.8V
- Supports GPRS data services, the maximum data rate, download 85.6Kbps, upload 42.8Kbps
- Support standard GSM07.07,07.05 AT commands and Ai Thinker extended commands
- Supports 2 serial ports:download a serial port and AT command port.
- AT commands support the standard AT, and TCP/IP command interface
- Support for digital audio and analog audio, support HR,FR,EFR,AMR speechcoding
- Support GPS+AGPS
- GPS location information support a separate serial NEMA output and read by AT
- Support external 300,000 pixel webcam
- Support ROHS,FCC,CE,CTA certification
- SMT 42PIN package
- A7 size : 22.8×19.8×2.5mm
- Working temperature : -30℃to+80℃
